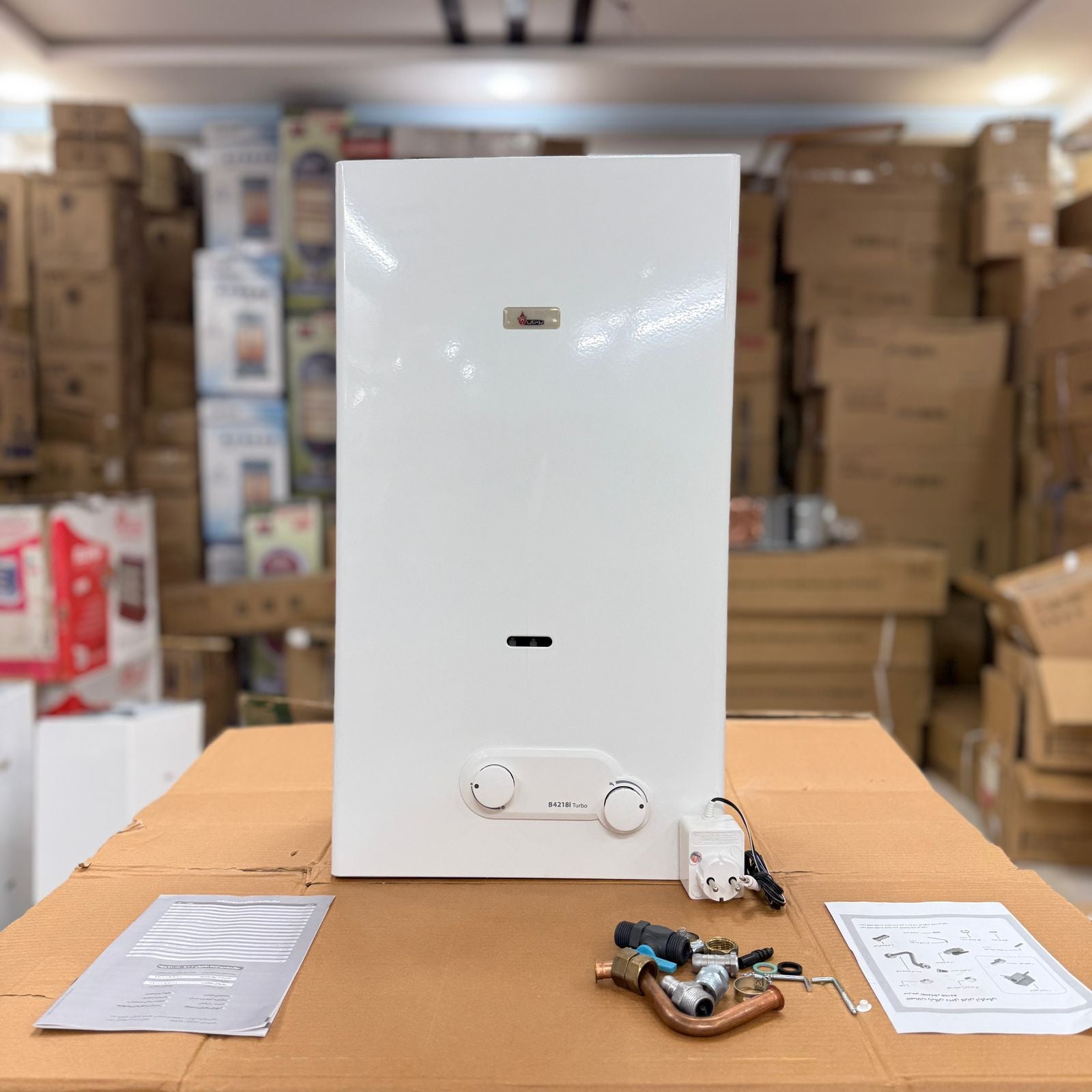

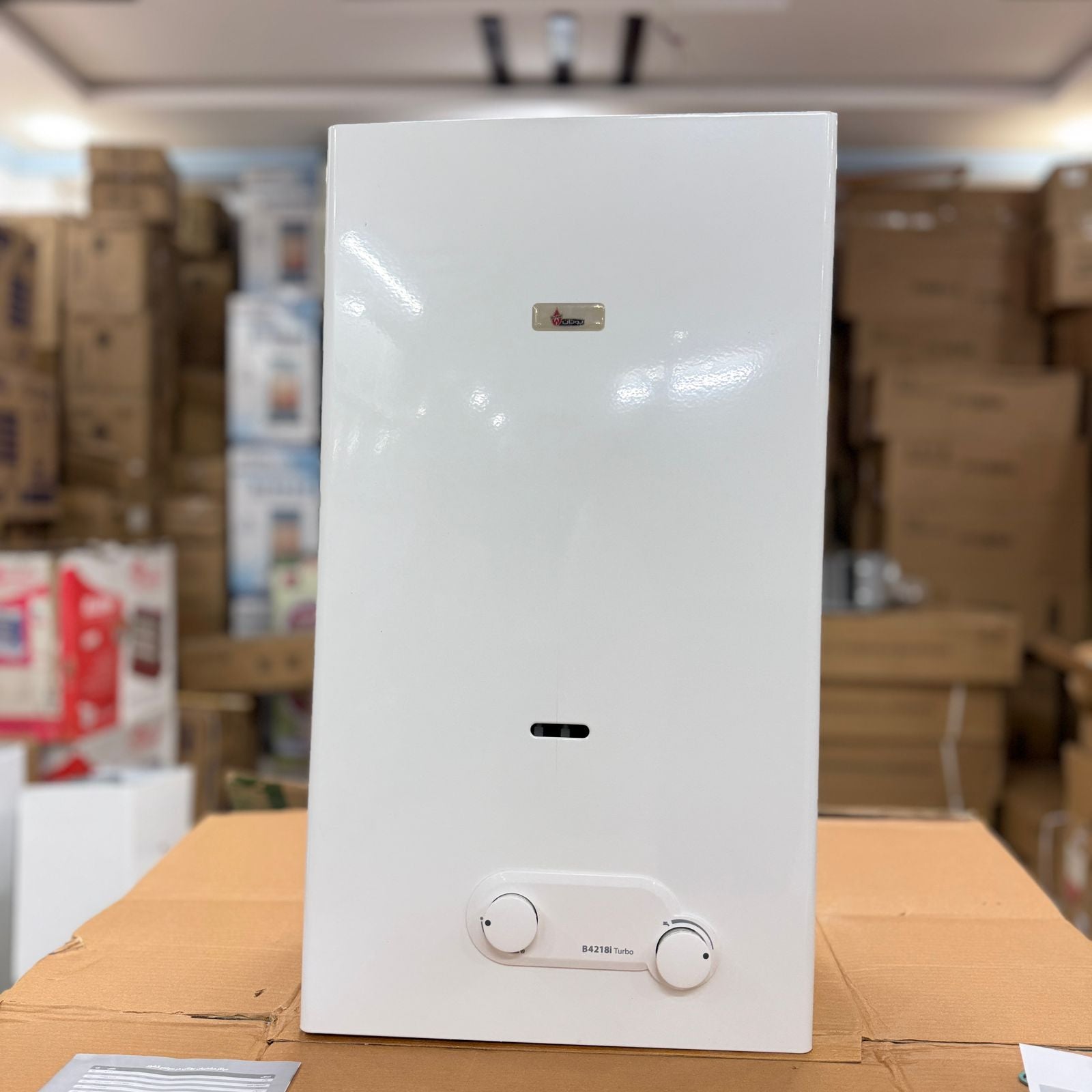

Irani Gas Geyser B-4218i Turbo
B4218i Turbo Technical Specifications
| Index | Unit | Value |
| Minimum start-up water pressure | bar | Very low pressure |
| 0.15 – 0.1 | ||
| Maximum heating capacity | kcal/hr | 22.300 |
| Hot water capacity | lit/min | 13 – 6.5 |
| Water temperature difference between input and output | C° | 50 – 25 |
| Minimum start-up flow | lit/min | 2.5 |
| Maximum water pressure | bar | 10 |
| Natural gas consumption | m3/hr | 2.9 |
| LPG consumption | kg/hr | 2.2 |
| Natural gas pressure | mm.w.c | 180 |
| LPG pressure | mm.w.c | 280 |
| Net Weight | Kg | 12.5 |
| Width
Height Depth
|
mm
mm mm |
365 |
Important points for installing butane wall gas water heaters

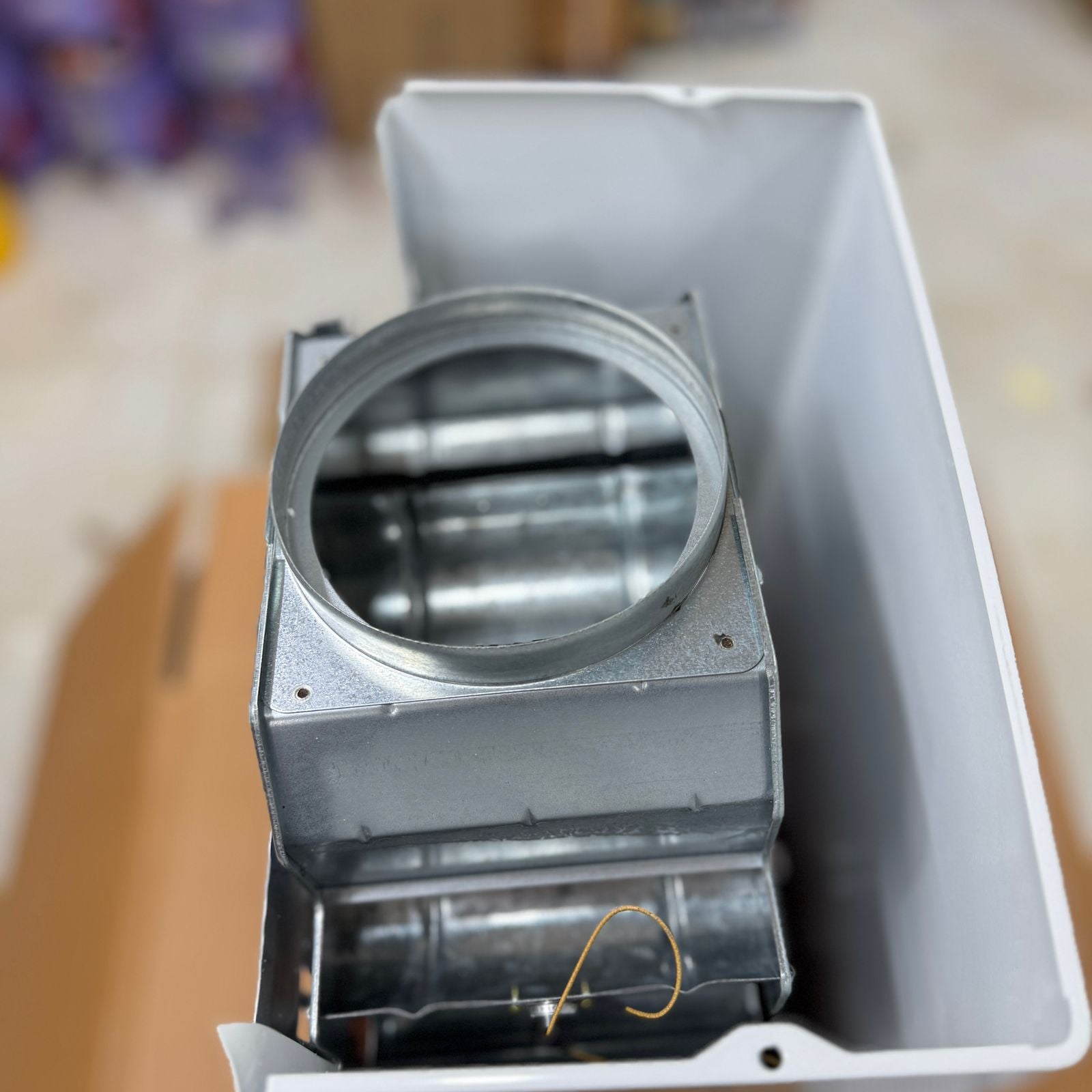

To install this gas water heater, it is necessary to use a special double-walled chimney (completely sealed). For each knee added to the chimney path, one meter is reduced by the maximum length of the double-walled chimney.

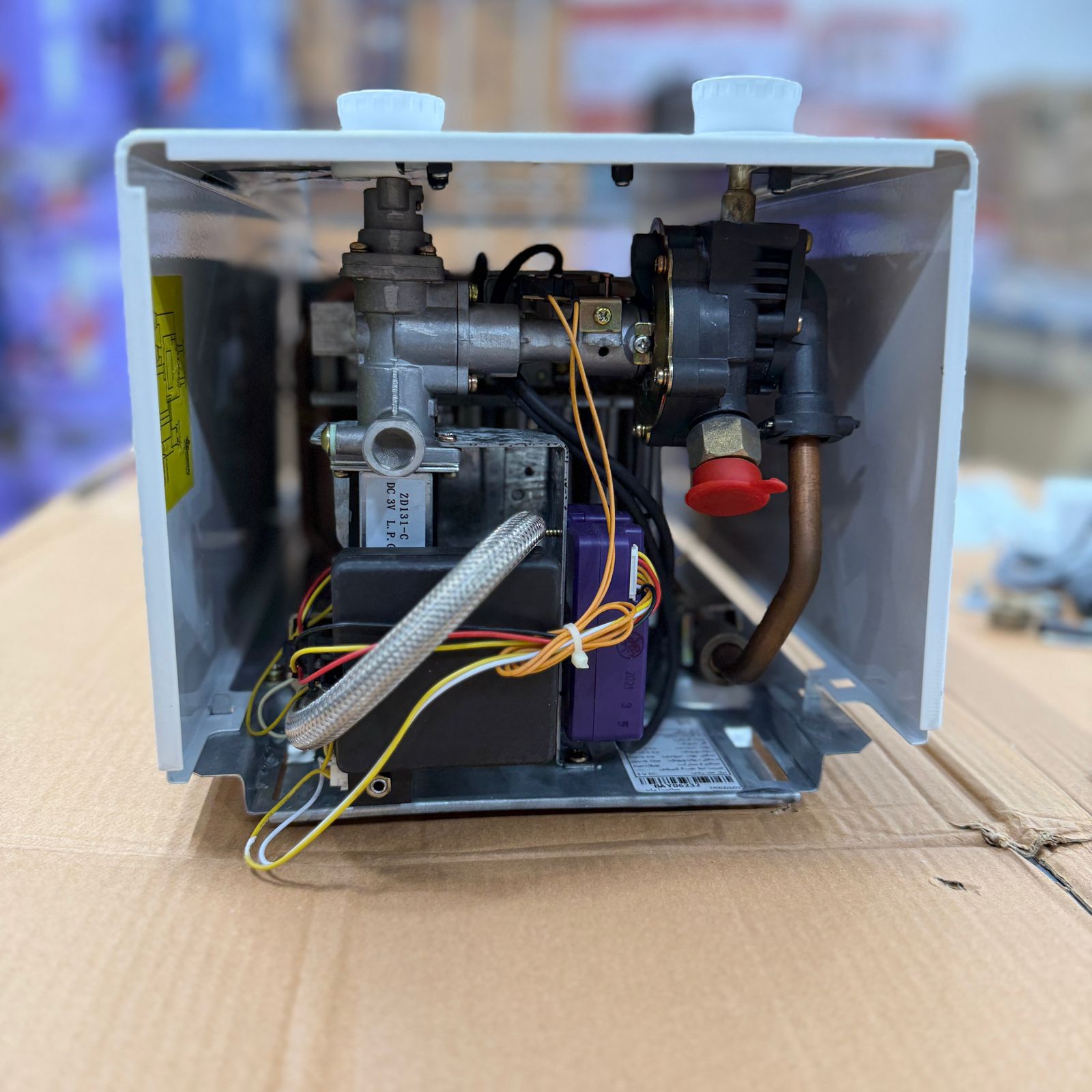

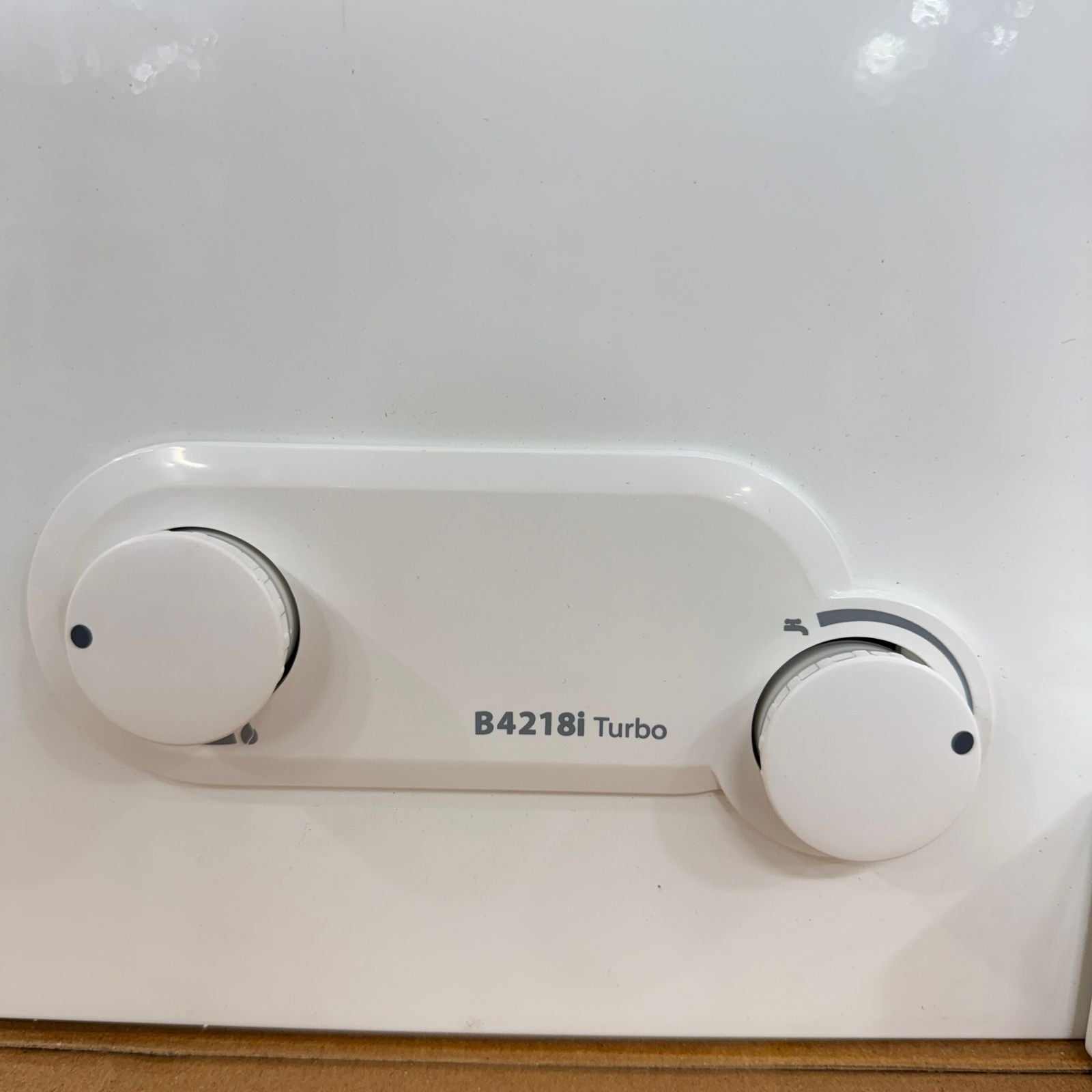

All butane wall-mounted gas water heaters, in addition to being able to operate with low water pressure (0.2 bar) and having internal standards and European quality standard CE, have advantages such as having a temperature control valve and outlet water, the possibility of adjusting the flame volumetric and continuous Equipped with a safety valve and heat switch on the converter, intelligent modular system (gradual), the ability to work with city gas and liquefied gas.
